제목: Information about Slim Jim Antenna

작성자: KM6OHV
Updated on 03/01/2018

Hi KARA members,

This is the antenna that I am currenterly testing.

Website: http://www.n9tax.com/Slim%20Jim%20Info.html



Features:

    * Built with durable materials.
    * Sealed from the weather.
    * Proper connectors (no bulkhead female SMA connectors)
    * High quality RG-58 cabling.
    * Durable Ladder wire construction (not tv ribbon cable)
    * Trapped UHF section for proper band alignment.
    * Ferrite choke installed on cable.
    * MADE IN THE USA!

Specs:

    * Dual Band 2m/70cm (144-148 / 440-450)
    * Antenna body approx 5' in length.
    * Feedline 16' or 10' in length.
    * Will handle 100+ watts.
    * 6db of gain.
    * Low radiation takeoff angle (peak <4 degrees)
    * 10 oz total weight.

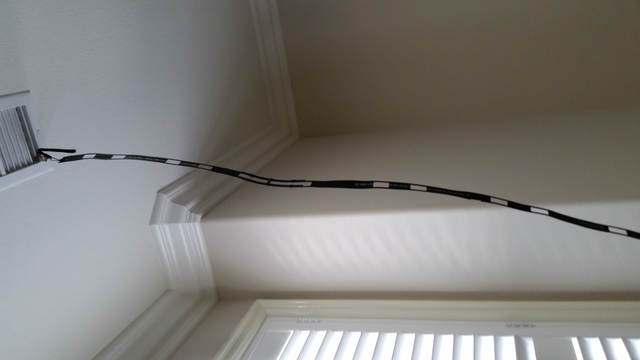

ant hang



Attachment: 20180217_145101.jpg Download
20180217_153218.jpg Download
20180205_055820.jpg Download
20180217_153234.jpg Download

AB6AD

Slim Jim 안테나 처음 봤습니다.재미있는 안테나 이네요 !
정보 감사합니다. 계속 테스트 하시면서 결과 알려 주세요...
궁금 하네요 ~!

 02/19/2018 17:38 Delete
AI6EY

SWR. 맞추기 좀 까다로왔던 기억 있습니다..ㅎㅎ

 02/21/2018 07:49 Delete
KM6OHV

SWR is less 1.25 and I believed it is match for 2m / 70cm
Here is the web site for more information;
http://www.n9tax.com/Slim%20Jim%20Info.html

 02/22/2018 11:37 Delete
